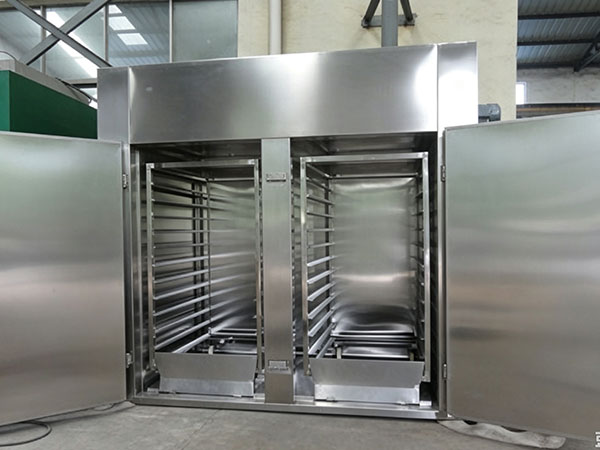

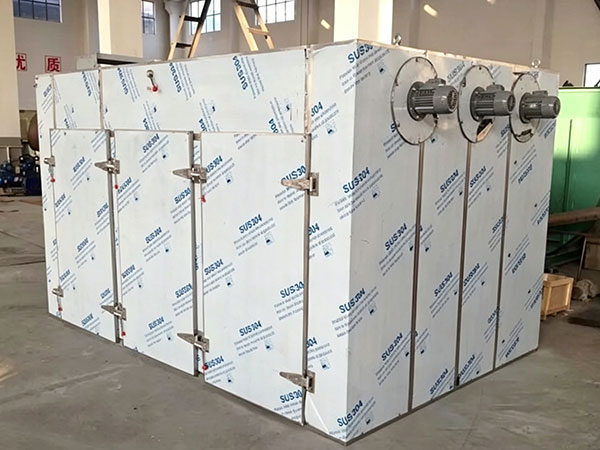

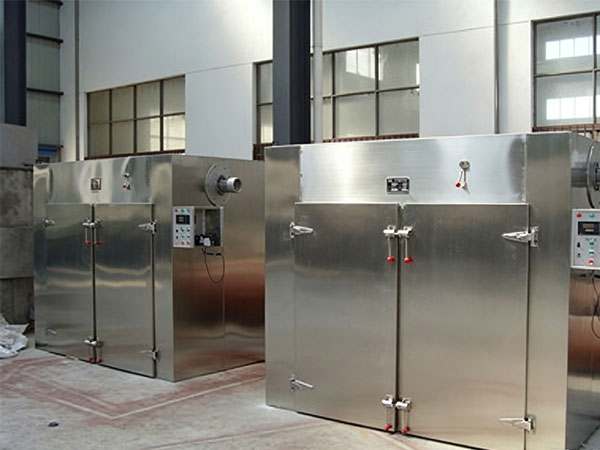

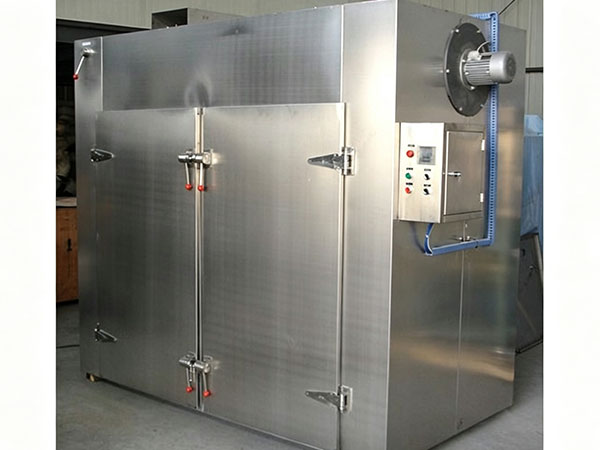

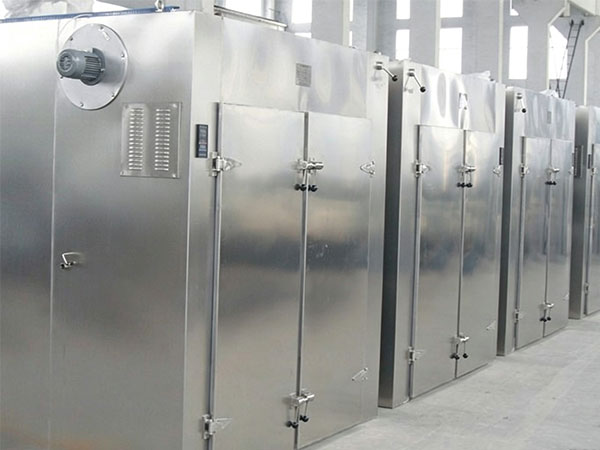

hot air circulation oven

Product introduction:

The CT-C series hot air circulation ovens are equipped with low-noise and high-temperature resistant axial flow fans and automatic temperature control systems. The entire circulation system is completely enclosed, increasing the thermal efficiency of the oven from 3-7% in the traditional drying room to the current 35-45%, and the thermal efficiency can reach 50%. It saves a lot of energy for our country and improves the economic benefits of enterprises. In 1990, the industry standard was issued by the State Administration of Medicines, and the unified model is RXH.

◎ Heating heat sources include steam, electricity, far infrared, and electric steam for users to choose;

◎ Operating temperature: steam heating 50~140oC,^high 150oC;

◎ Electricity and far infrared temperature 50~350oC;

◎ Equipped with automatic control system and computer control system for users to choose;

◎ Commonly used steam pressure 0.02-0.8Mpa(0.2 - 8kg/m2);

◎ Equipped with electric heating, 15KW calculated according to type I, practical 5-8kw/h;

◎ Special requirements are explained when ordering;

◎ Non-standard oven price negotiable;

◎ If the operating temperature is greater than 140oC or less than 60oC, it must be noted when ordering;

◎ The size of the drying truck and drying tray factory is uniform and interchangeable;

◎ Baking pan size: 460×640×45(mm).

Performance characteristics:

  Most of the hot air circulates in the box, which has high thermal efficiency and saves energy. Taking advantage of forced ventilation, there is an adjustable air distribution plate in the box, so that the materials are evenly dried. The heat sources can be steam, hot water, electricity, and far infrared, with a wide range of choices. The whole machine has low noise and balanced operation. Temperature self-controlled, easy installation and maintenance. It has a wide range of application and can dry various materials. It is a universal drying equipment.

Adapted materials:

  Suitable for curing, drying and dehydrating materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry, etc. Such as raw materials, crude drugs, Chinese herbal pieces, extract, powder, granules, granules, water pills, packaging bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking paint, etc.
