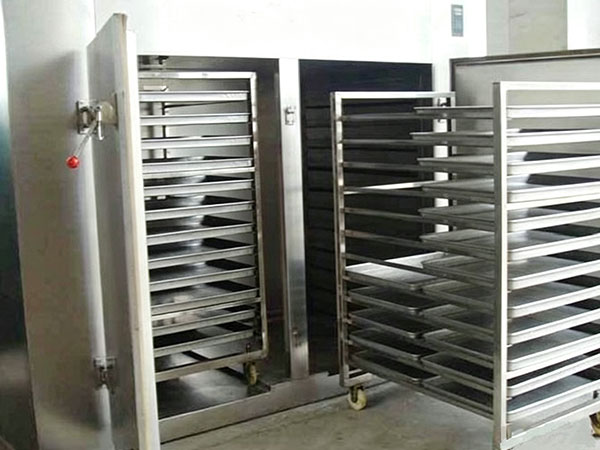

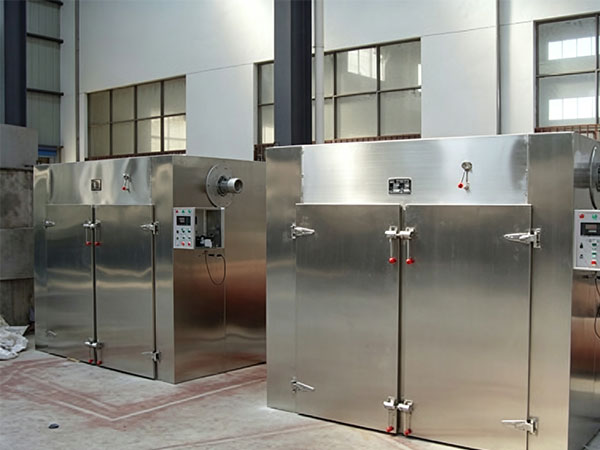

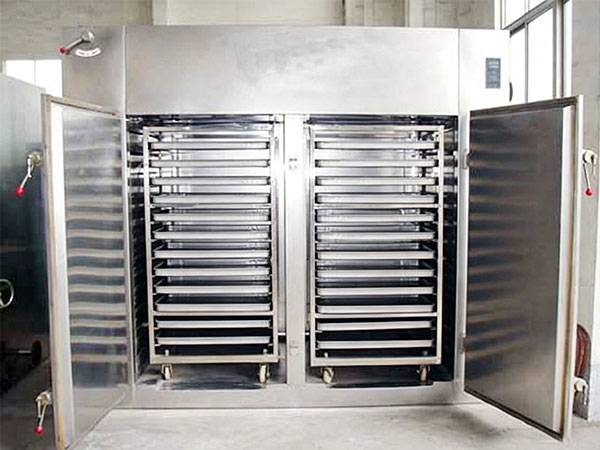

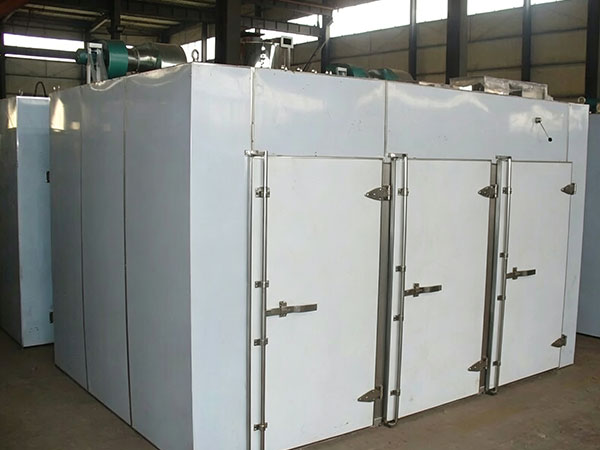

Pharmaceutical GMP oven

The pharmaceutical GMP oven provides dual-use heating methods of steam, electricity and electric steam. The temperature range is 50-350 ° C. It is automatically controlled and recorded. The inner wall is fully welded without dead spots. It has good sealing properties. It is equipped with high-efficiency air filter. It complies with GMP standards and is suitable for the efficient drying needs of the pharmaceutical industry.

Product description:

◎ There are three methods for heating heat sources: steam, electricity, and electric steam dual-use types.

◎ Operating temperature: steam heating 50-140℃, the temperature can reach 150℃; electric heating 50-350℃;

◎ The temperature is automatically controlled and recorded by a recorder;

◎ The inner wall of the box is fully welded, and each transition point adopts arc transition without dead corners.

◎ The whole machine has good sealing performance. The unique guide rail sealing device ensures the sealing performance of the whole machine;

◎ The air inlet is equipped with a high-efficiency air filter; the moisture outlet is equipped with a medium-efficiency air filter.

◎ Double door oven and double door realize mechanical interlocking;

◎ All parts in the oven can be quickly disassembled and installed for easy cleaning;

◎ The control system is equipped with text display and touch screen to choose from;

◎ The whole machine meets the "GMP" requirements.

model/Specifications

Dry amount per time
kg)

fan power
kw)

steam consumption
kg / h)

drying truck
(vehicles)

baking pan
(only)

wide× depth × height
mm)

upper and lower temperature
℃)

GMP-O

35

0.45

8

/

16

1130×1100×1750

±2

GMP-I

120

0.45

18

2

48

2300×1200×2000

±2

GMP-II

240

0.9

36

4

96

2300×2200×2000

±2

GMP-III

360

1.35

54

6

144

3430×2200×2000

±2

GMP-IV

480

1.8

72

8

192

4460×2200×2290

±2
